RFComm is sole authorized distributor for Etrontimes Technology PTE LTD. Singapore High Power Test Solution product range in India . Etrontimes Technologies are leading manufacturer of high-power RF/Microwave test equipment, Etrontimes Technology provides multiple high-power test equipment to simplify the test processes of high-power RF/Microwave. Now, high power signals can be measured directly without additional attenuation and calibration procedures.
We will provide Pre sales, Sales and support for all the High-Power Test solution product range of Etrontimes Technologies. Below are the range of products we offer from Etrontimes Technologies and request you to contact us for your requirements.
High-Power Signal Generator
High-Power RF Generator
High-Power Directional Vector Analyzer
Directional Power Meter
Absorption Power Meter
RF Power Meter
High-Power Directional Spectrum Analyzer
High-Power Absorption Spectrum Analyzer
Multi Channel Amplitude & Phase Analyzer
High-Power Signal Generator
High-Power Signal Generator
Features
- Maximum Dynamic Range: -50~+60dBm
- High-Power Output : Up to 1kW CW
- Various Models Covering Wide Frequency Range: 4KHz-40GHz
- Power Accuracy: <0.3dB Typ
- Harmonics/Spurious: -40dBc/-55dBc
- CW/Pulse/Frequency & Power Sweep Modes & Analog Modulation Signals are supported
- Remote Communication Supported
- Integrated Design: No need for Multiple Instruments
High-Power RF Generator
Features
- Frequency Range: Center Frequency ±5% Adjustable (All Models)
- Stable CW Output, Up to 30 kW
- High Efficiency: Up to 75%
- Built-in VI Sensor for
- Forward/Reverse Power, VSWR & Impedance Monitoring Protection: Over-voltage, Overcurrent, Over-temperature &Over-VSWR
- Remote Communication Supported
High-Power RF Generator
High-Power Directional Vector Analyzer
High-Power Directional Vector Analyzer
Features
- Vector Analysis: Simultaneous Measurement of Fwd/Rev Power, VSWR & Load Impedance
- Smith Chart & Spectrum Display
- Wide Frequency Range: 1 MHz–40 GHz (All Models)
- Through Power: Up to 140 kW
- High-Precision Measurement with Low Insertion Loss
- Color Touchscreen
- Optional Battery, ≥6 h Operation
- Remote Communication & System Integration Supported
Directional Power Meter
Features
- Support Frequency Measurement
- Different models covering High Power Measurement: up to 30KW and Frequency Range: 4KHz-60GHz
- Uncertainty: ±0.1dB Typ
- FWD Power/REV Power/Output VSWR Measurement
- Mode: CW/Average/Peak
- Cost-effective & Customizable
Directional Power Meter
Absorption Power Meter
Absorption Power Meter
Features
- Support Frequency Measurement
- Various Models Covering Frequency Range: 4KHz-40GHz
- High Power Measurement: up to 10KW
- Uncertainty: ±0.1dB Typ
- Mode: CW/Average/Peak
- Cost-effective & Customizable
RF Power Meter
Features
- Wide Frequency Range: 9 kHz–40 GHz (Expandable)
- High Dynamic Range: −50 to +20 dBm
- High-Precision Measurement: ≤±3%
- Dual-Channel Operation for Simultaneous Multi-Point Testing
- Interchangeable Probes for Extended Frequency & Power Ranges
- Auto Zeroing & Calibration to Eliminate Probe Errors
- Remote Communication & System
RF Power Meter

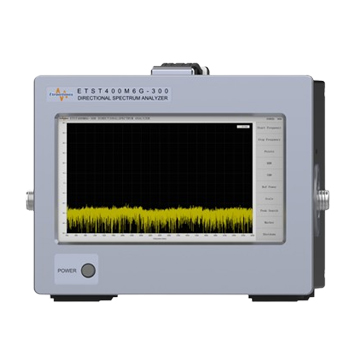

High-Power Directional Spectrum Analyzer
High-Power Directional Spectrum Analyzer
Features
- Various models covering Frequency Range: 9KHz-18GHz.
- Through Power: Up to 140kW
- Directional Design with FWD/REV Spectrum Display
- High Precision Measurements with low Insertion loss
- Color touch Screen Display
- Highly Integrated for Field Applications
High-Power Absorption Spectrum Analyzer
Features
- Absorption-Type Design with Built-in Load for direct High-Power Testing
- Various Models Covering Frequency Range: 9KHz-18GHz
- Maximum Analysis Power: 10KW
- Up to 1.2THz Spectrum Sweep Speed
- Color Touchscreen
- Multiple Test Modes supported
High-Power Absorption Spectrum Analyzer
High-Power Directional Spectrum Analyzer

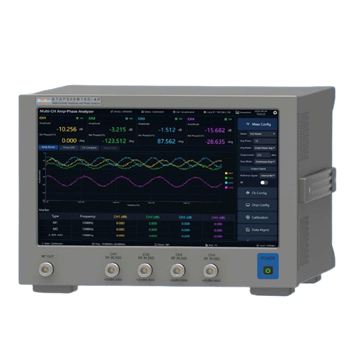

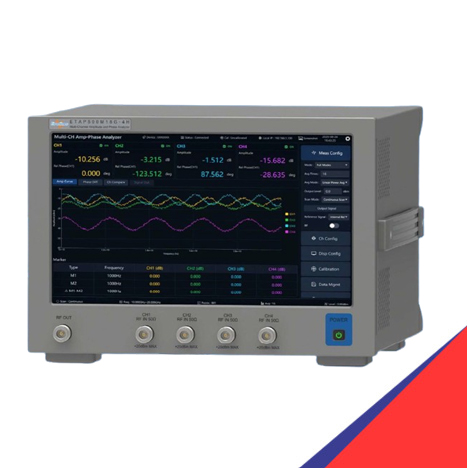

Multi Channel Amplitude & Phase Analyzer
Features
- Frequency coverage: 1MHz - 40GHz
- Supports high-power input up to 10W
- Supports amplitude and phase difference measurements
- Supports up to 8 channels
- Supports multi-channel expansion via switch matrix
- Independent operation as a signal generator or power meter
- High-accuracy powert and phase difference measurement
